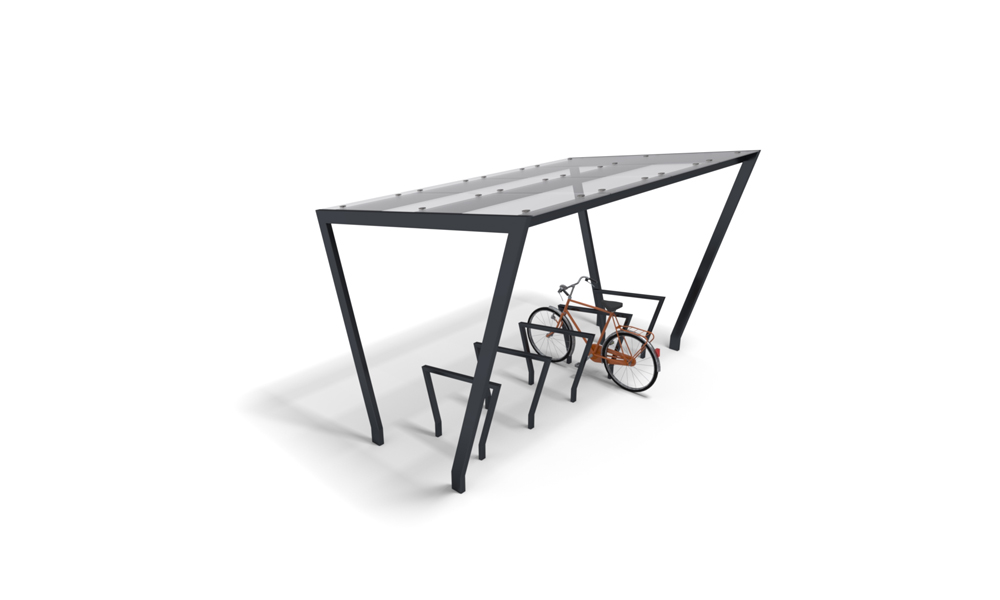

HOL_S_GL (glass)

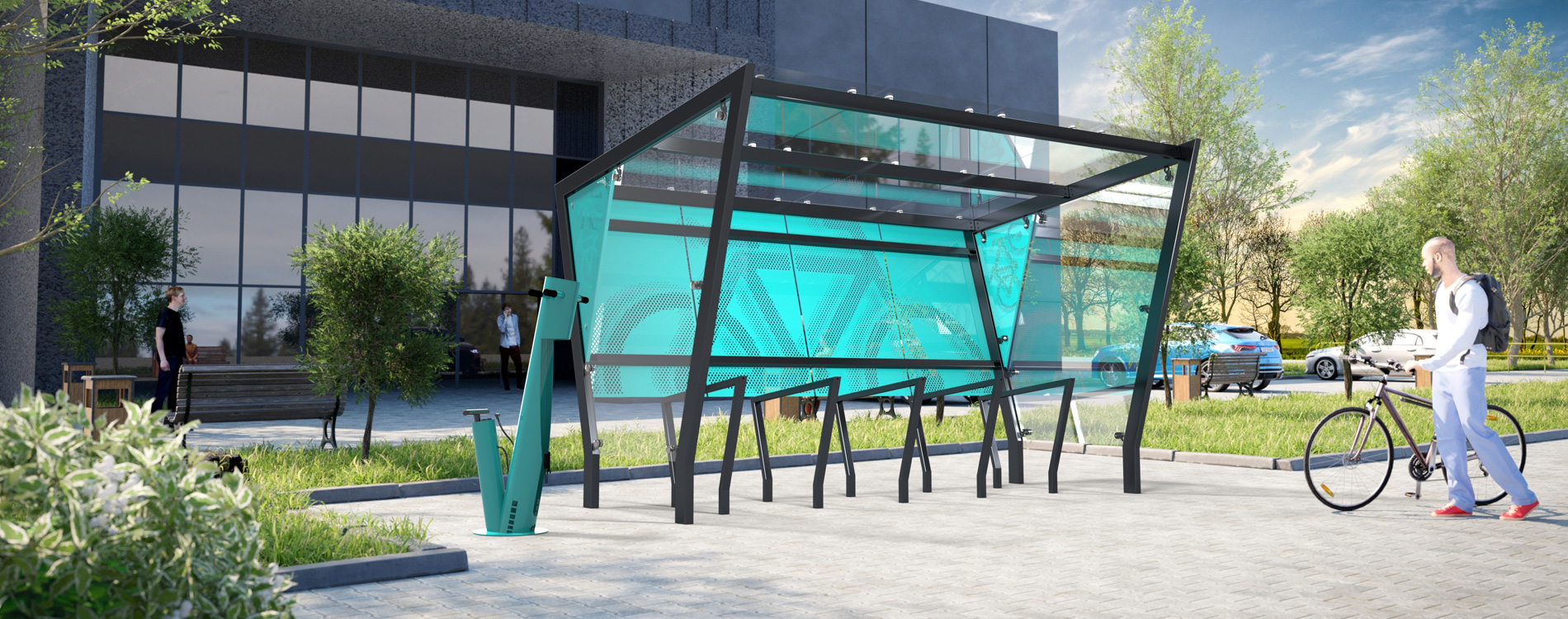

Modern and elegant bicycle shelter with a glass roof. Designer combination of steel and glass. As an option, the sides and back can be covered with glass or perforated sheet.
The HOL_S bicycle shelter is designed for the assembly of classic (single-level) racks. It has dedicated racks that refer to the shape of the shed. The HOL_S carport is available in many dimensions and finishes.
There are two roofing options to choose from:
– tempered safety glass (HOL_S_GL)
– trapezoidal sheet (HOL_S_TR) (go to the model)

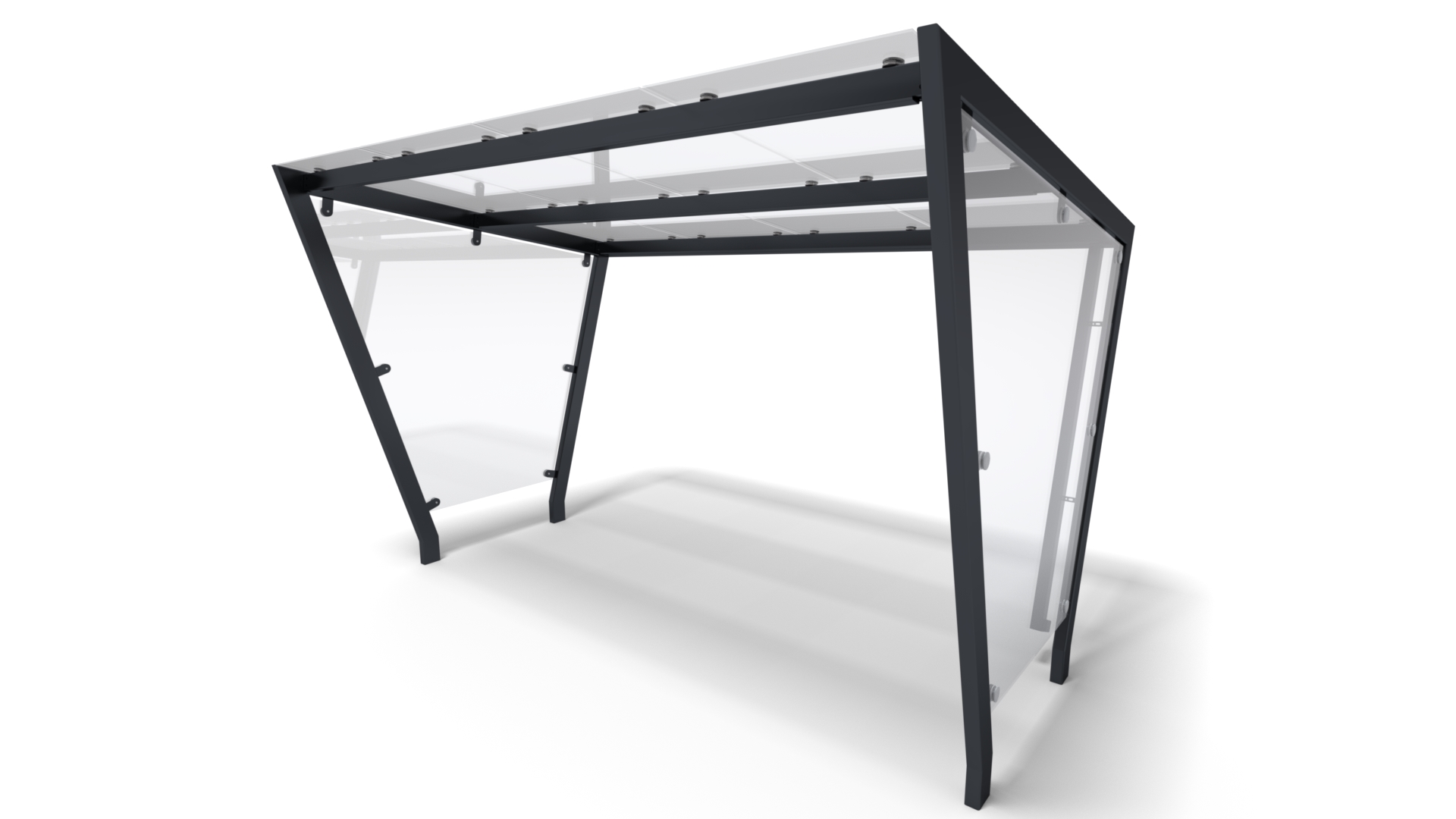

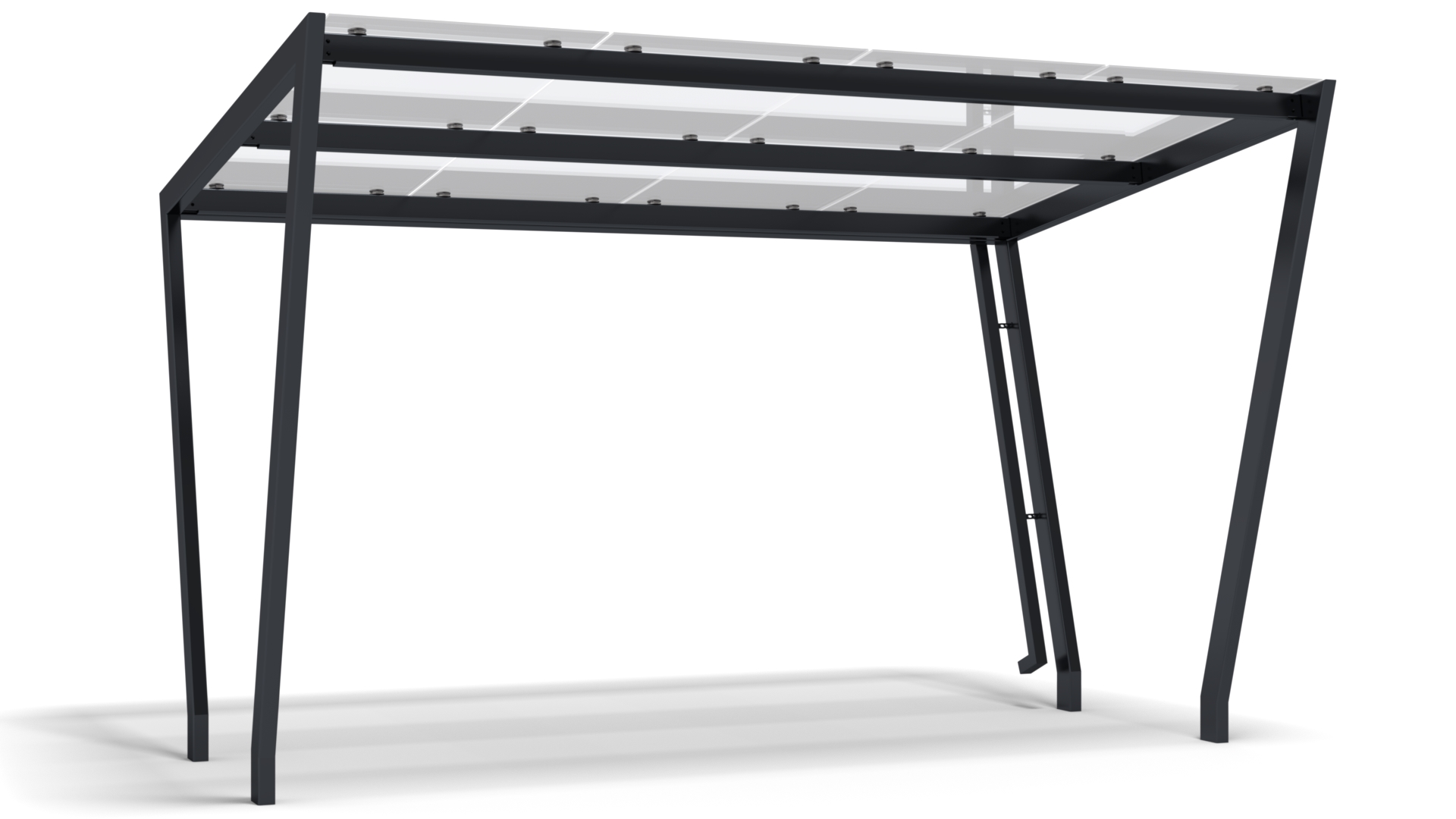

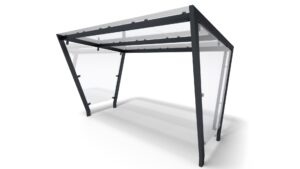

In the basic model, water from the roof is drained by gravity according to its slope. In each of the models, it is possible to install a gutter with a downpipe – below are visualizations of an example use:
Depending on the Customer’s needs, the HOL_S shelters (GL and TR) may have side walls, rear walls or side and rear walls.
The materials from which we make the structure for this shed are:
– tempered glass
– perforated sheet (powder coated in RAL color)
Ways of mounting the shelter:
– extended posts for concreting,
– assembly feet.
The construction of the shelter is made of steel profiles, protected against corrosion by hot-dip galvanization, thanks to which the construction is solid, durable, resistant to damage and adverse weather conditions.
The structure of the shelter can be painted in a color of your choice from the following RAL palette.
Modularity HOL_S_GL

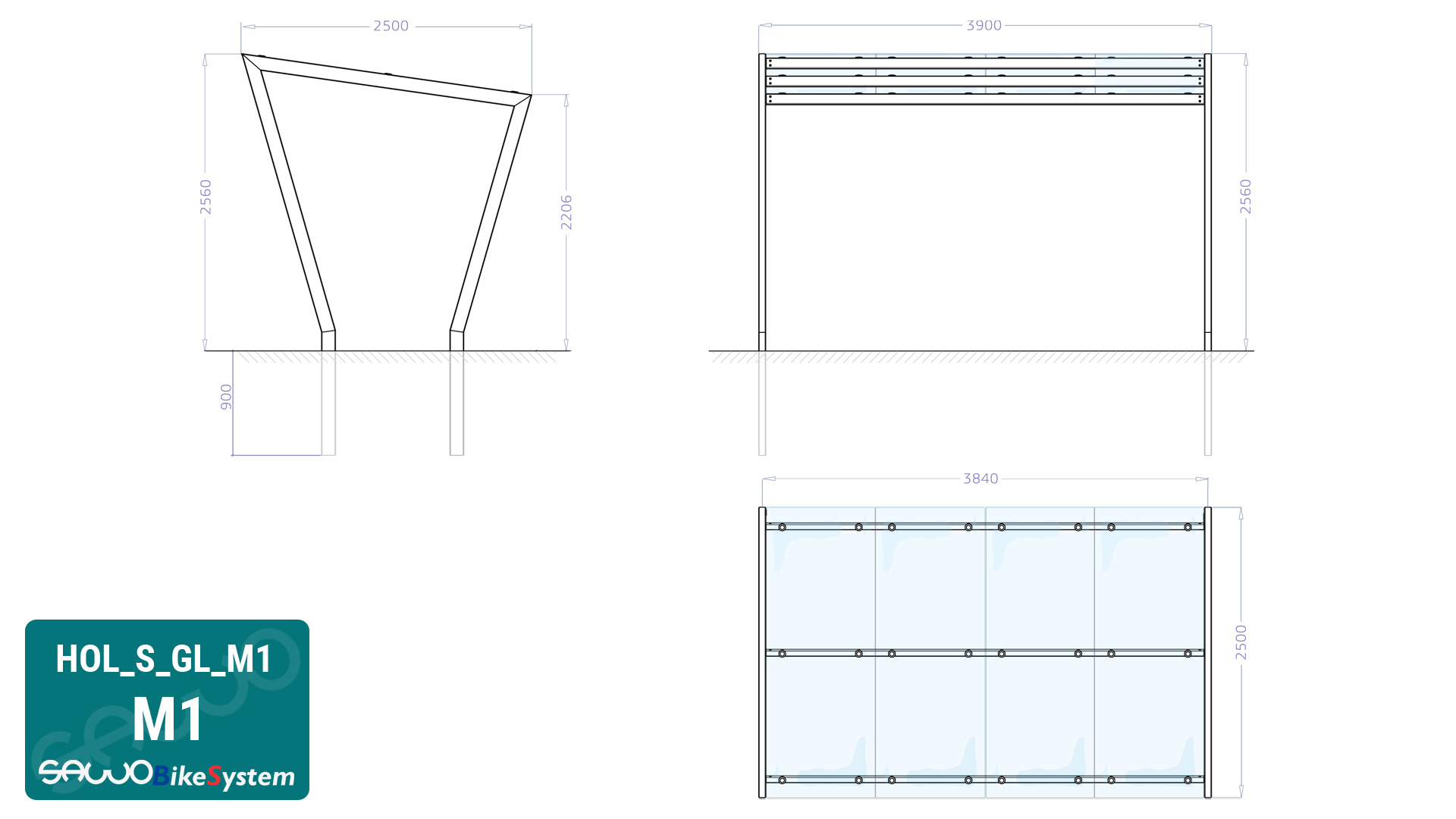

Specification:
length: 3900 mm
width: 2500 mm
height: 2450 mm
Materials used:
Construction:
galvanized steel
Roofing:
tempered safety glass
Side/rear walls construction:
tempered glass (check)
perforated sheet (check)
Construction colors:

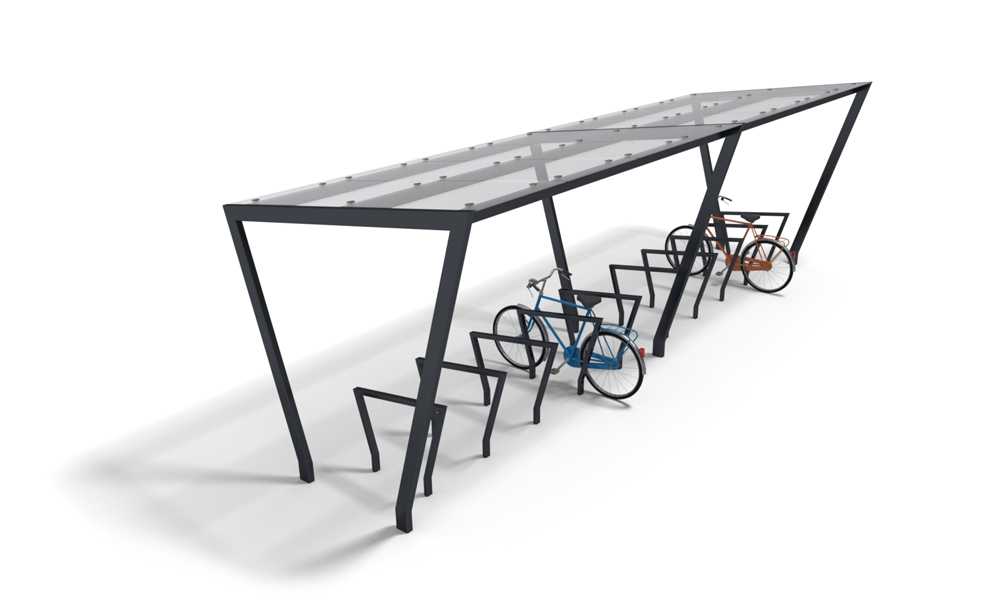

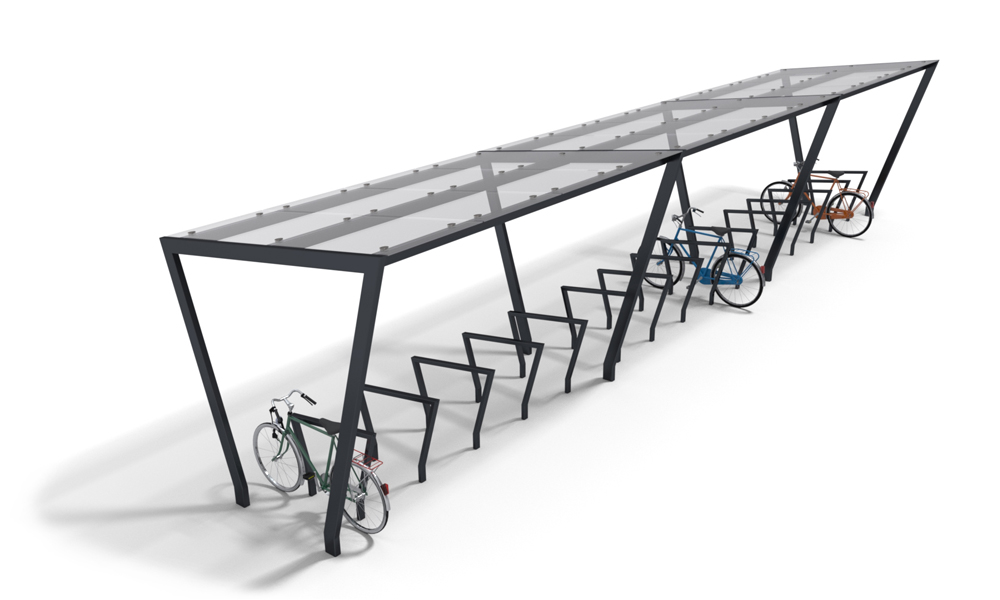

Examples of uses of bicycle racks:
BR.10 for 10 bikes
BR.131 for 10 bikes

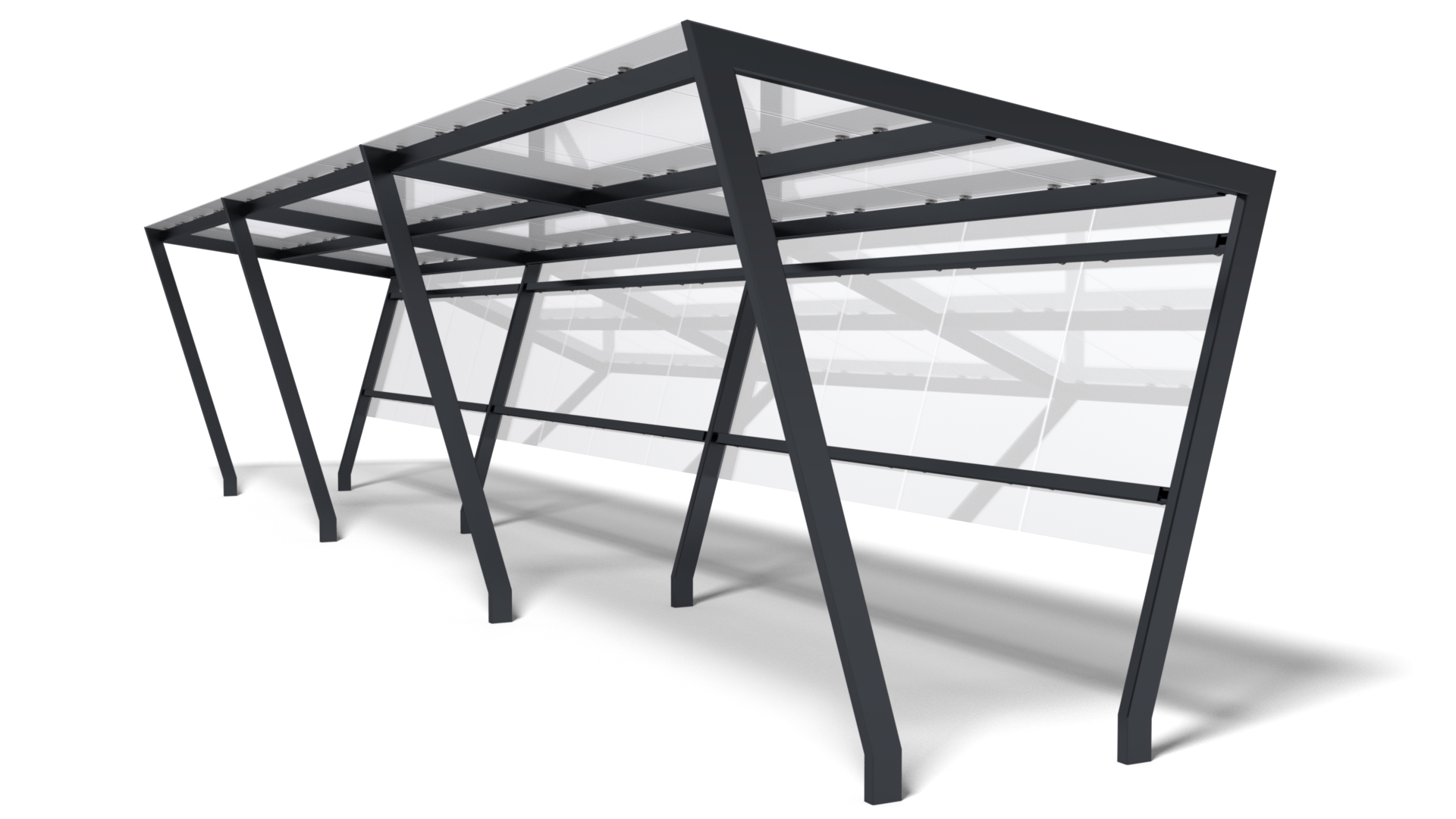

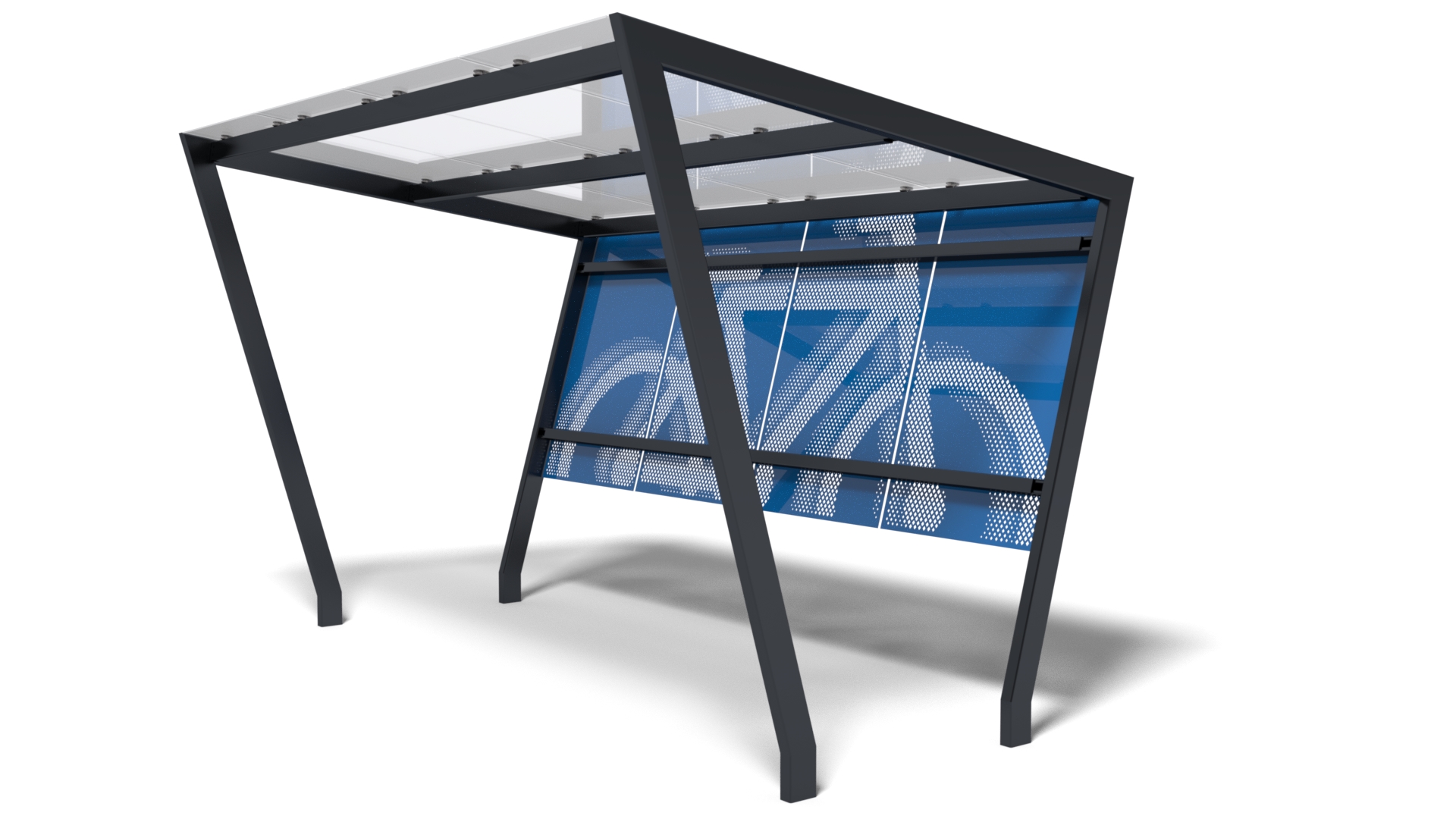

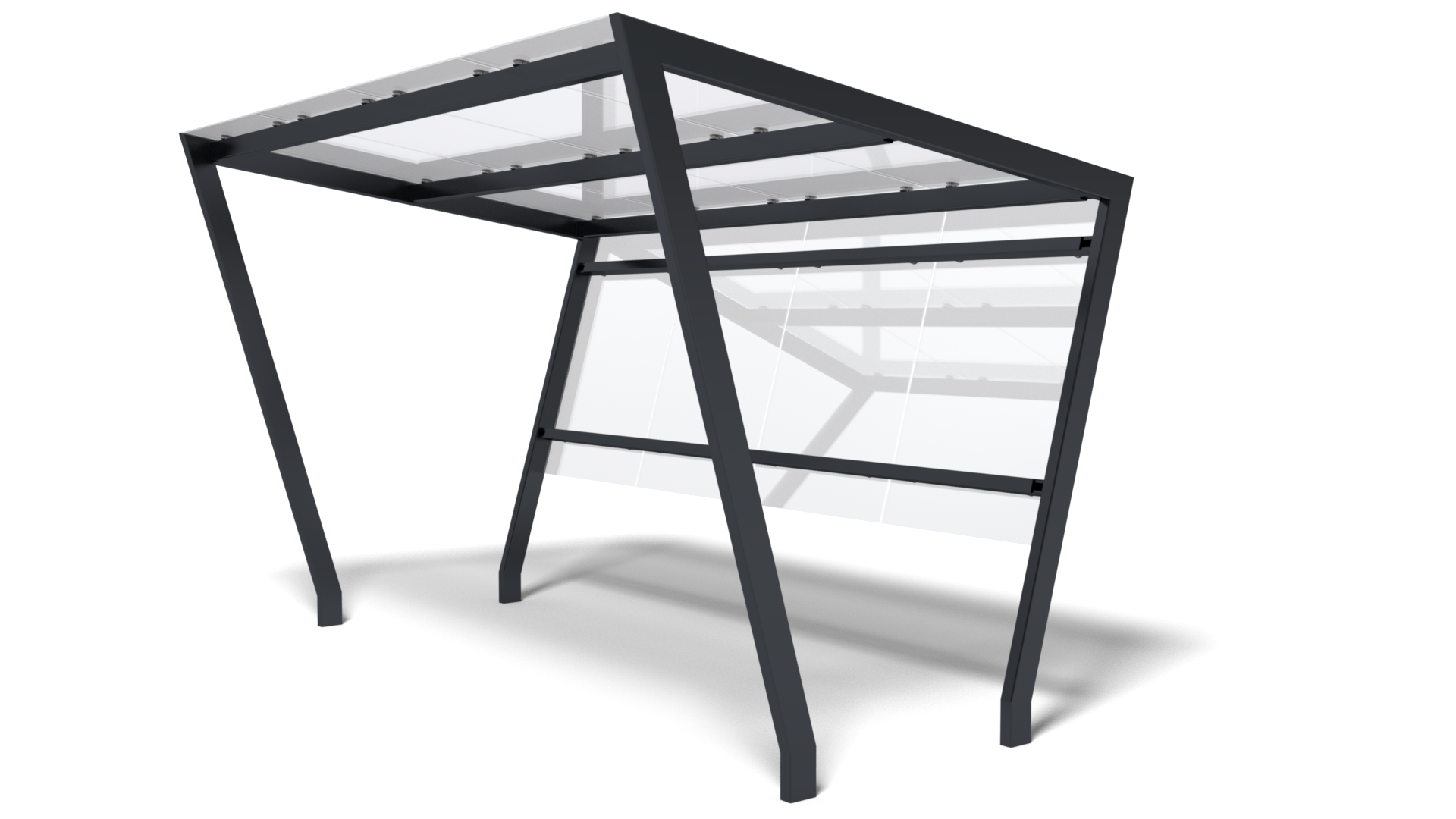

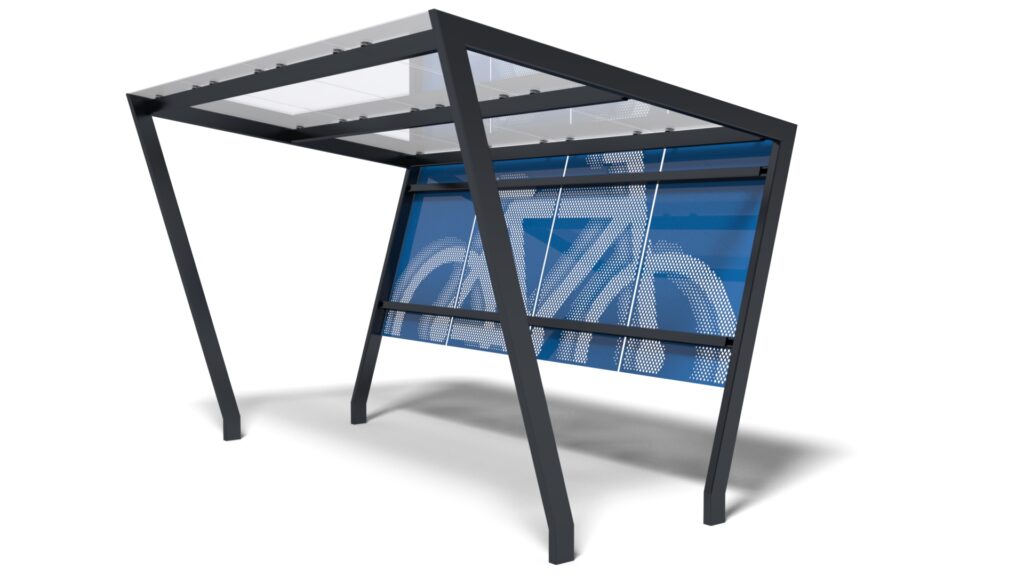

Visualizations of the rear wall

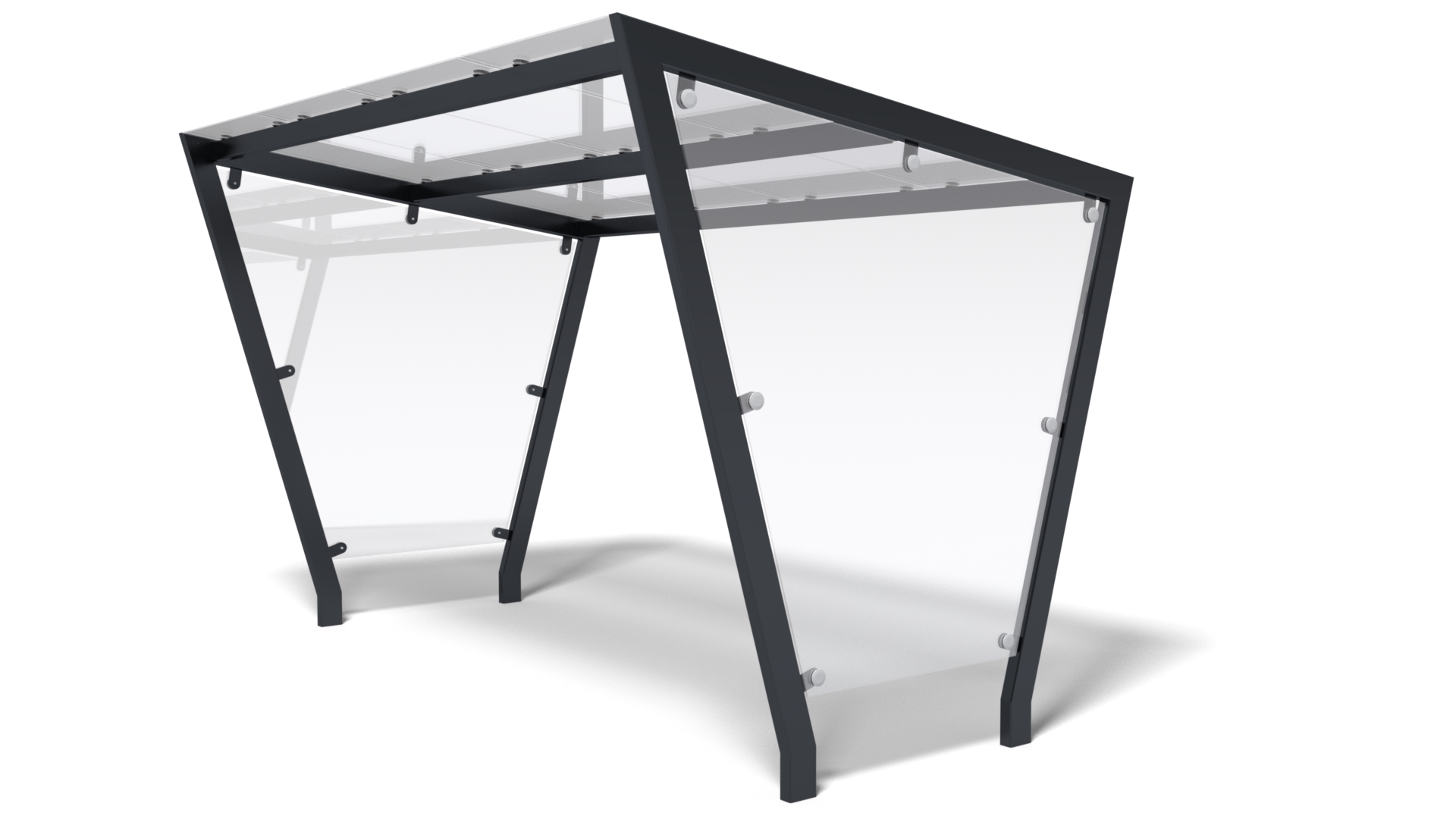

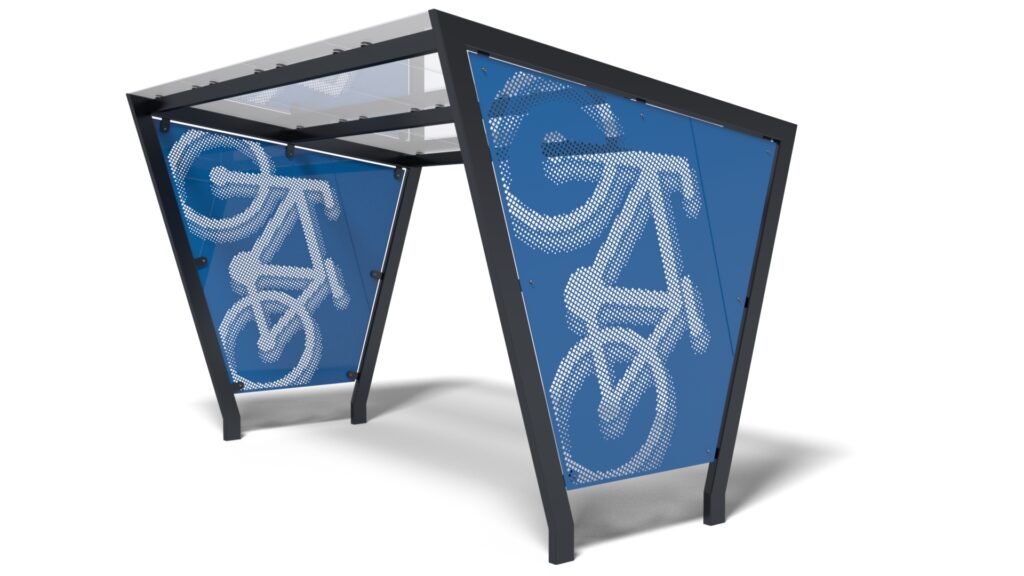

Visualizations of the side walls

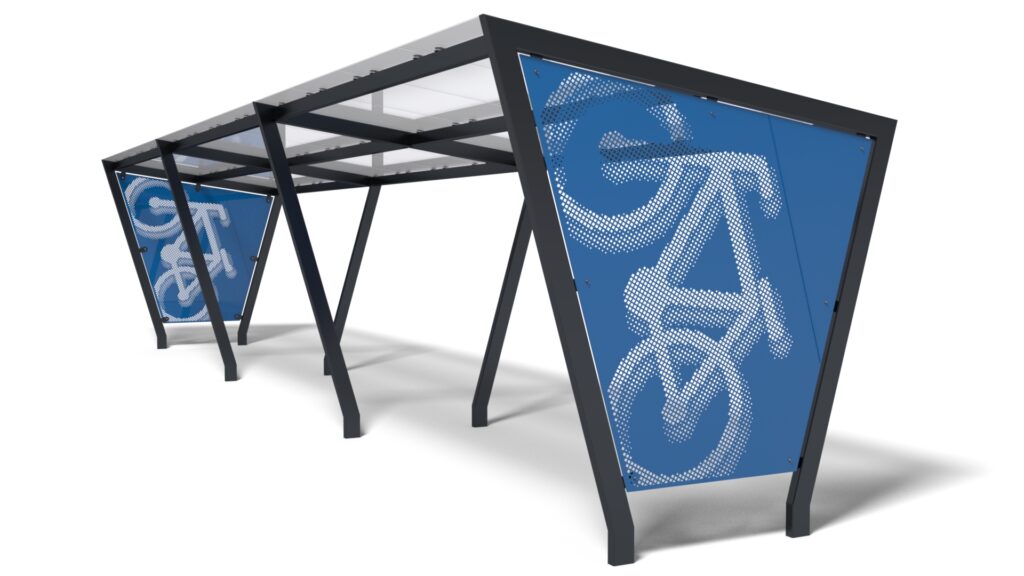

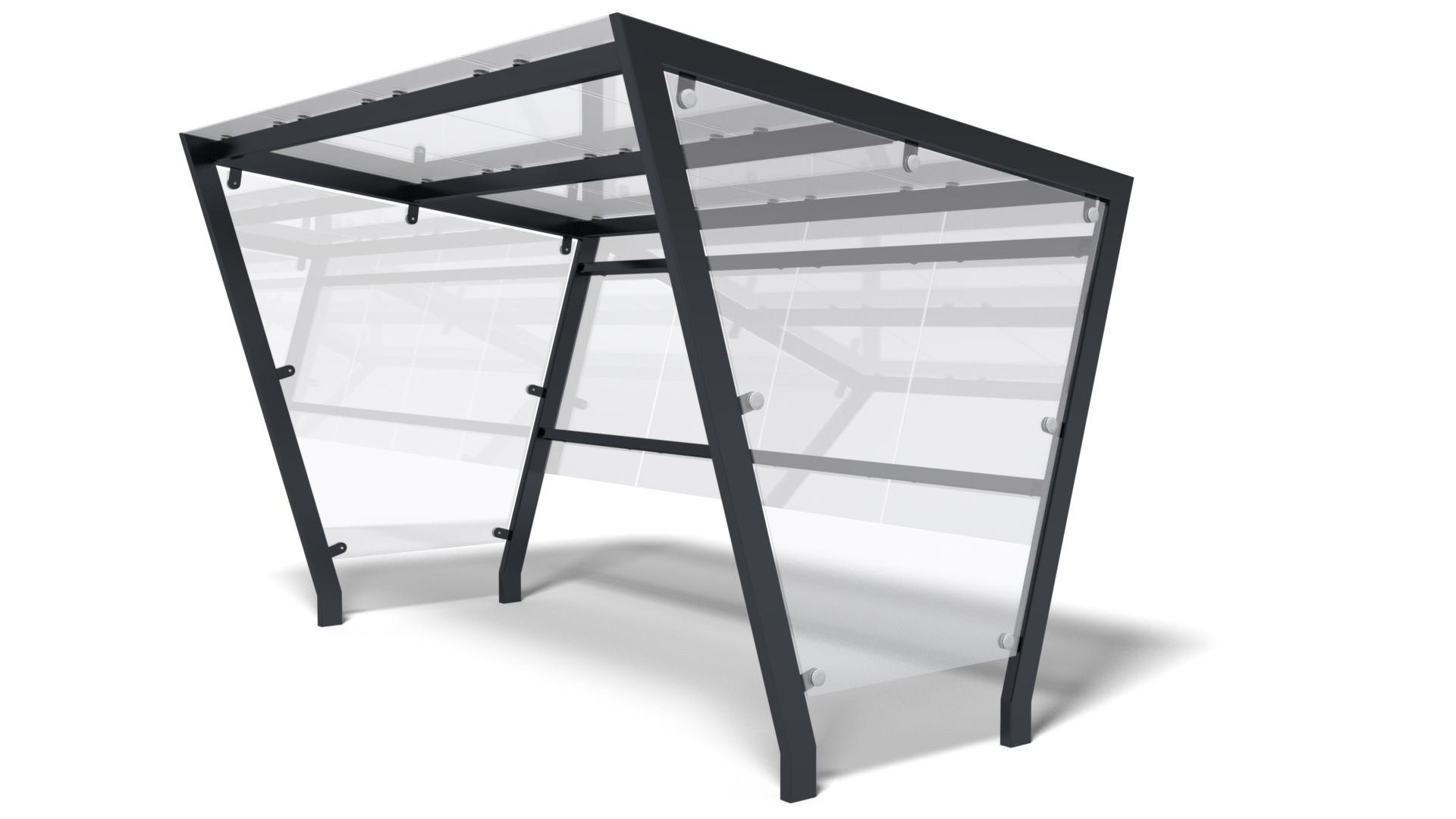

Visualizations of the rear and side walls

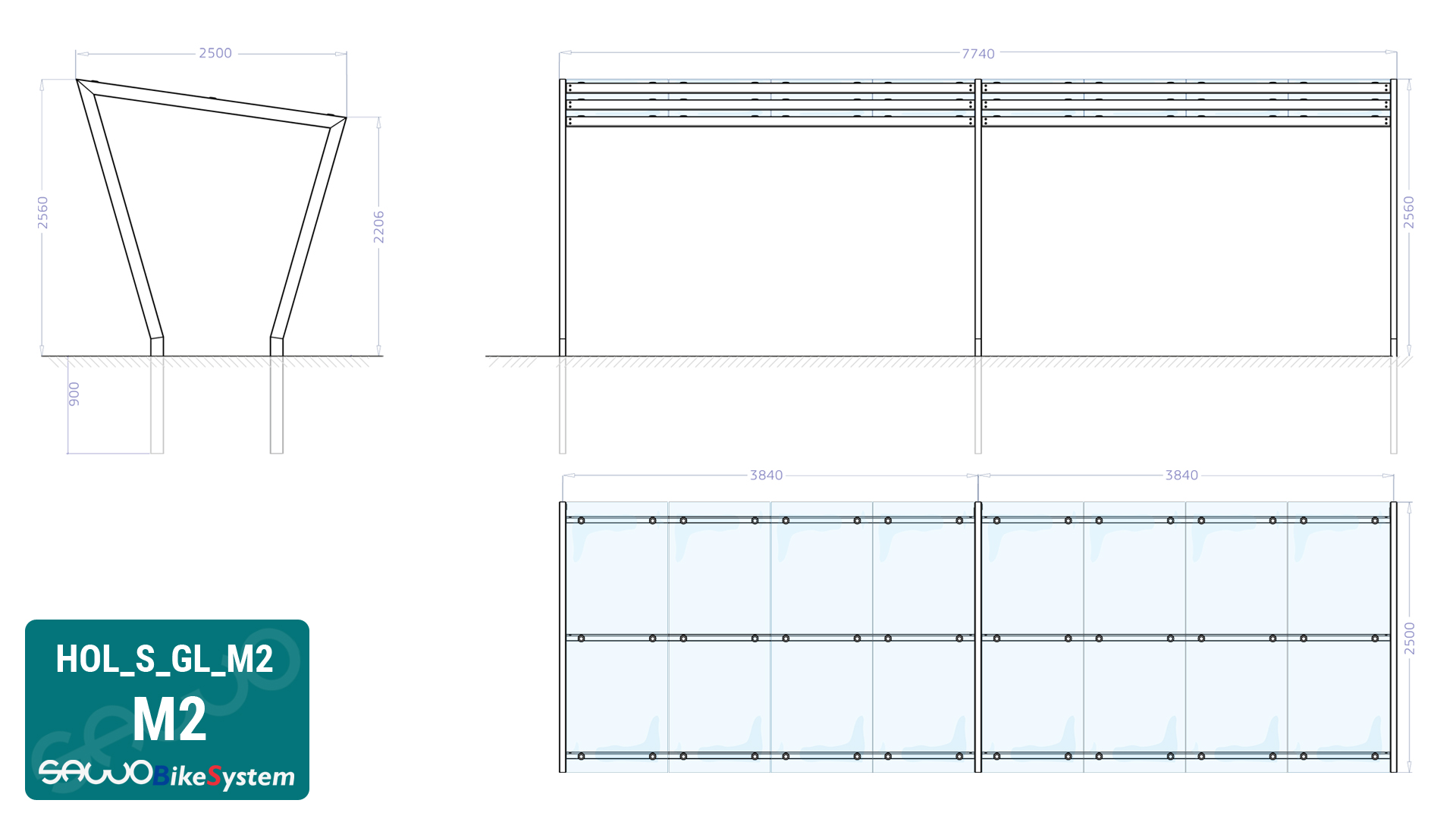

Specification:
length: 7740 mm
width: 2500 mm
height: 2450 mm
Materials used:
Construction:
galvanized steel
Roofing:
tempered safety glass
Side/rear walls construction:
tempered glass (check)
perforated sheet (check)
Construction colors:
Examples of uses of bicycle racks:
BR.10 for 20 bikes
BR.131 for 20 bikes

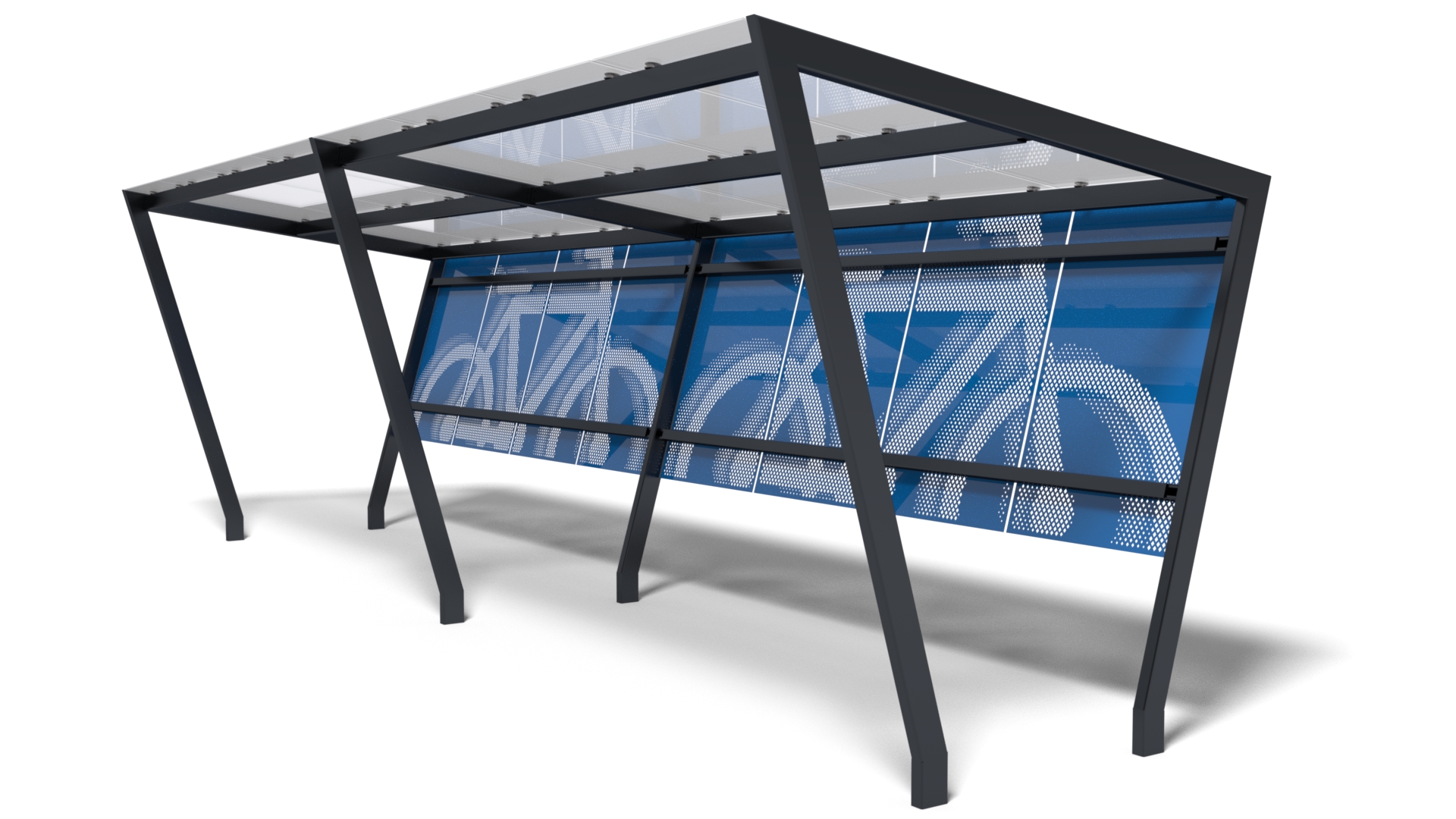

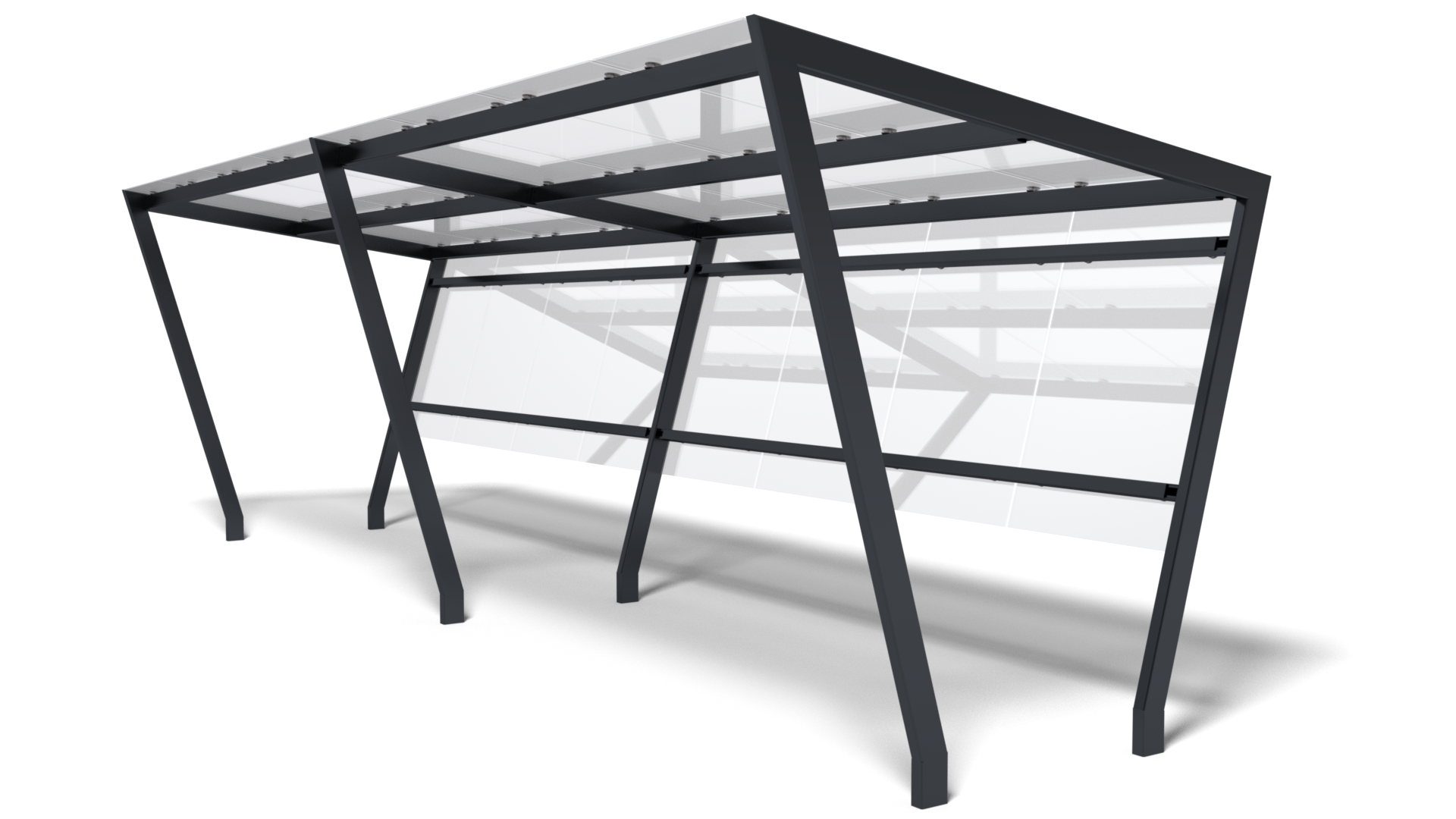

Visualizations of the rear wall

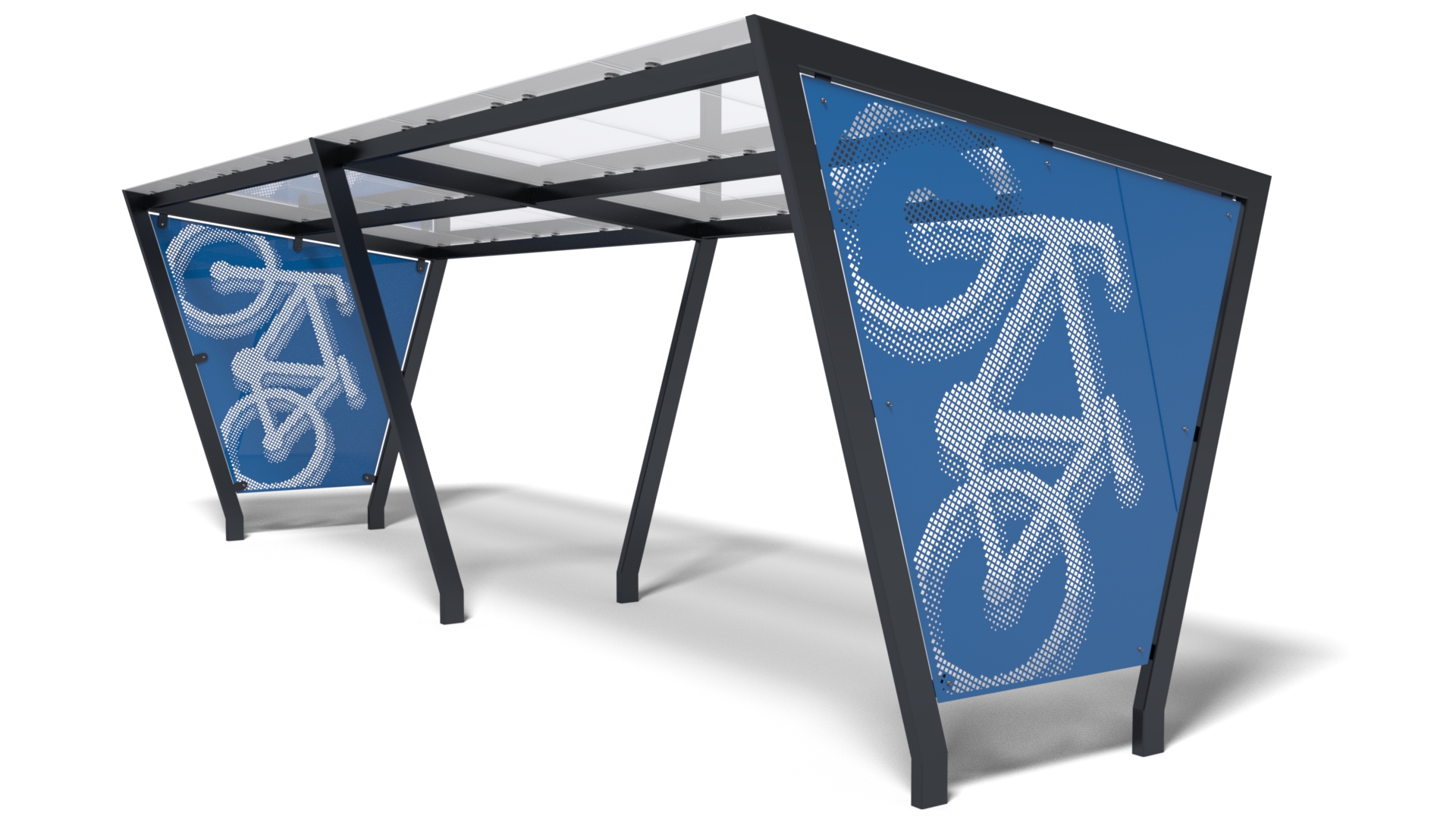

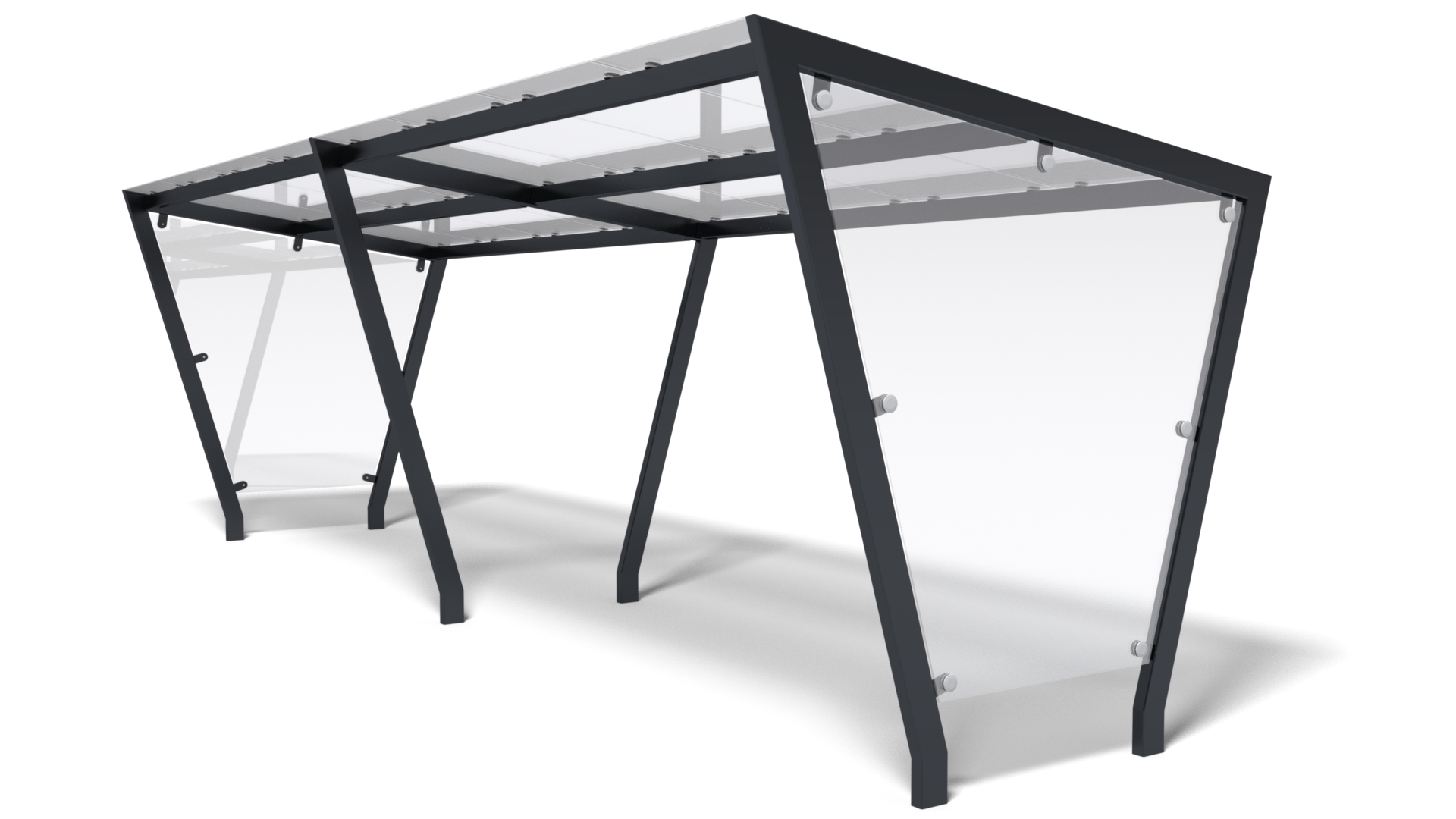

Visualizations of the side walls

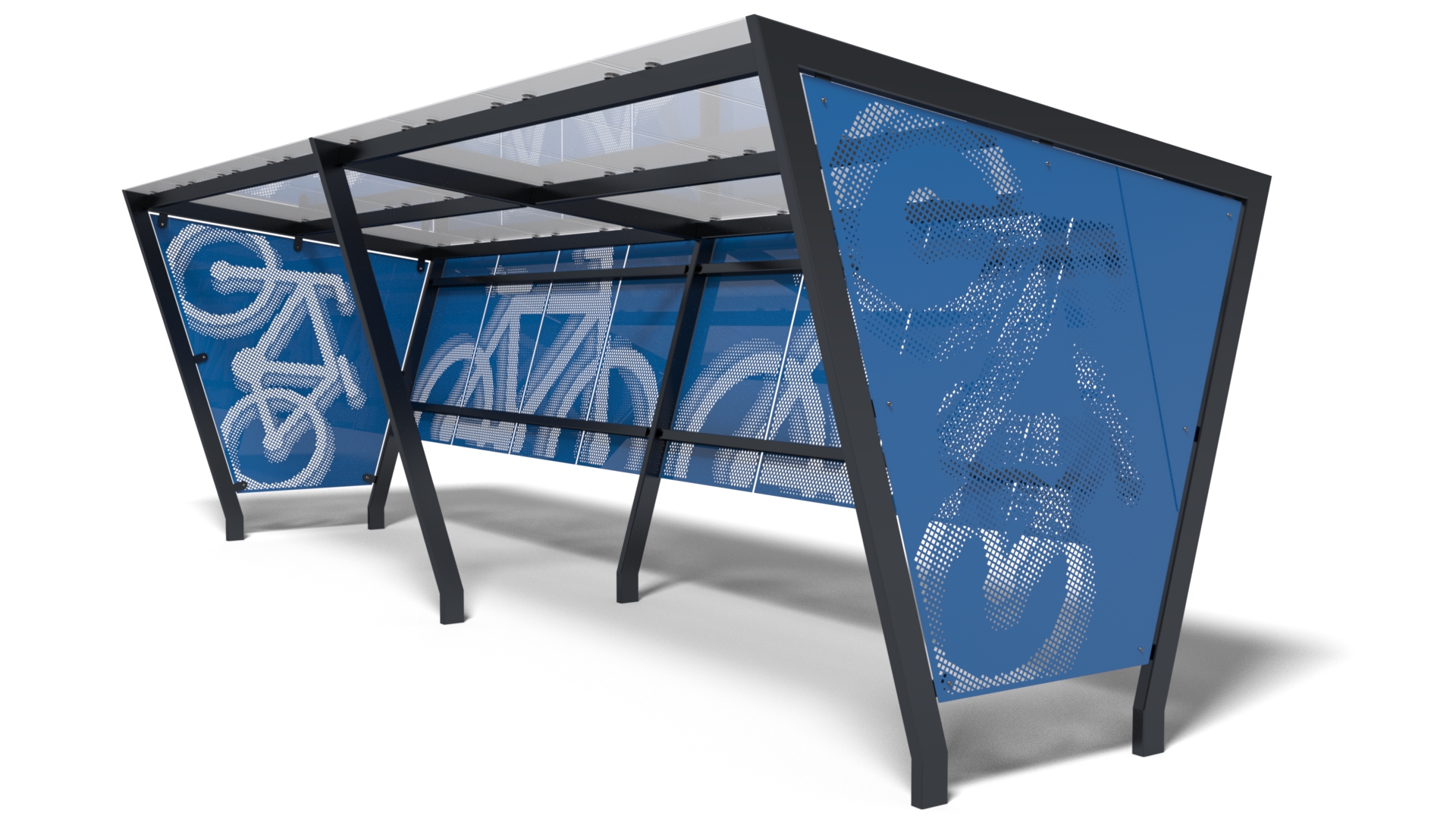

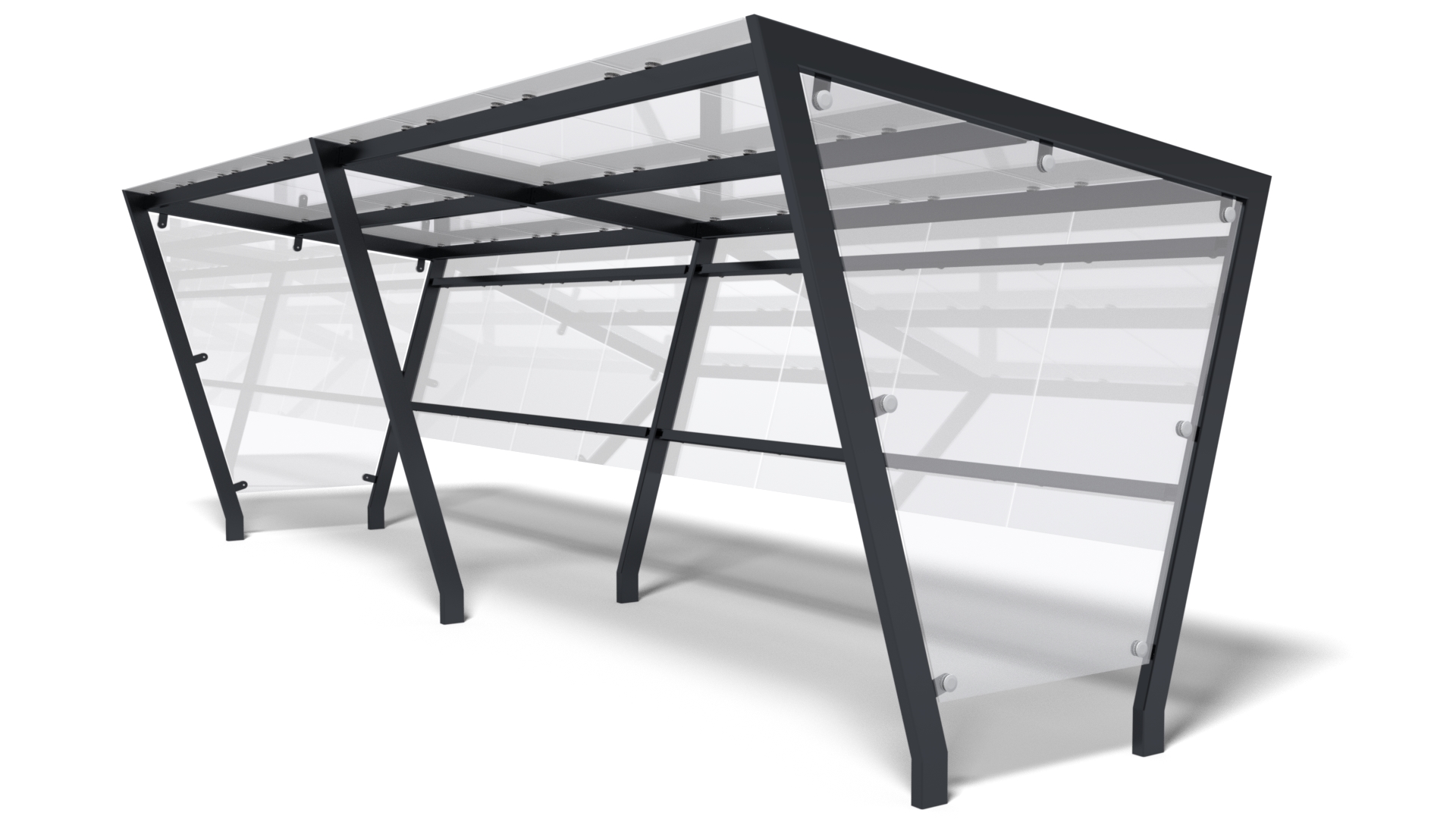

Visualizations of the rear and side walls
Specification:
length: 11580 mm
width: 2500 mm
height: 2450 mm
Materials used:
Construction:
galvanized steel
Roofing:
tempered safety glass
Side/rear walls construction:
tempered glass (check)
perforated sheet (check)
Construction colors:
Examples of uses of bicycle racks:
BR.10 for 30 bikes
BR.131 for 30 bikes
Visualizations of the rear wall
Visualizations of the side walls
Visualizations of the rear and side walls
Specification:
length: 15420 mm
width: 2500 mm
height: 2450 mm
Materials used:
Construction:
galvanized steel
Roofing:
tempered safety glass
Side/rear walls construction:
tempered glass (check)
perforated sheet (check)
Construction colors:
Examples of uses of bicycle racks:
BR.10 for 40 bikes
BR.131 for 40 bikes

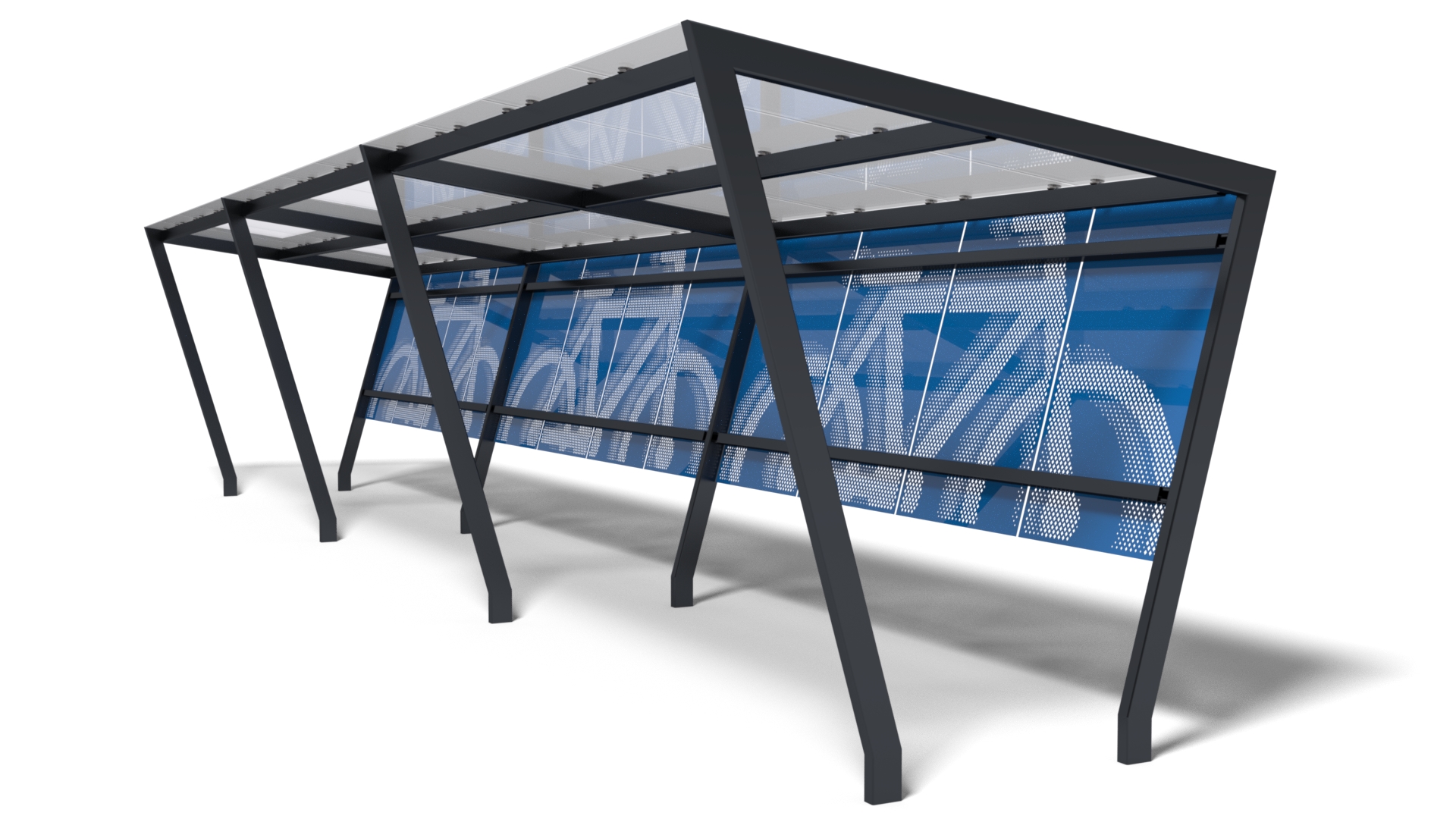

Visualizations of the rear wall

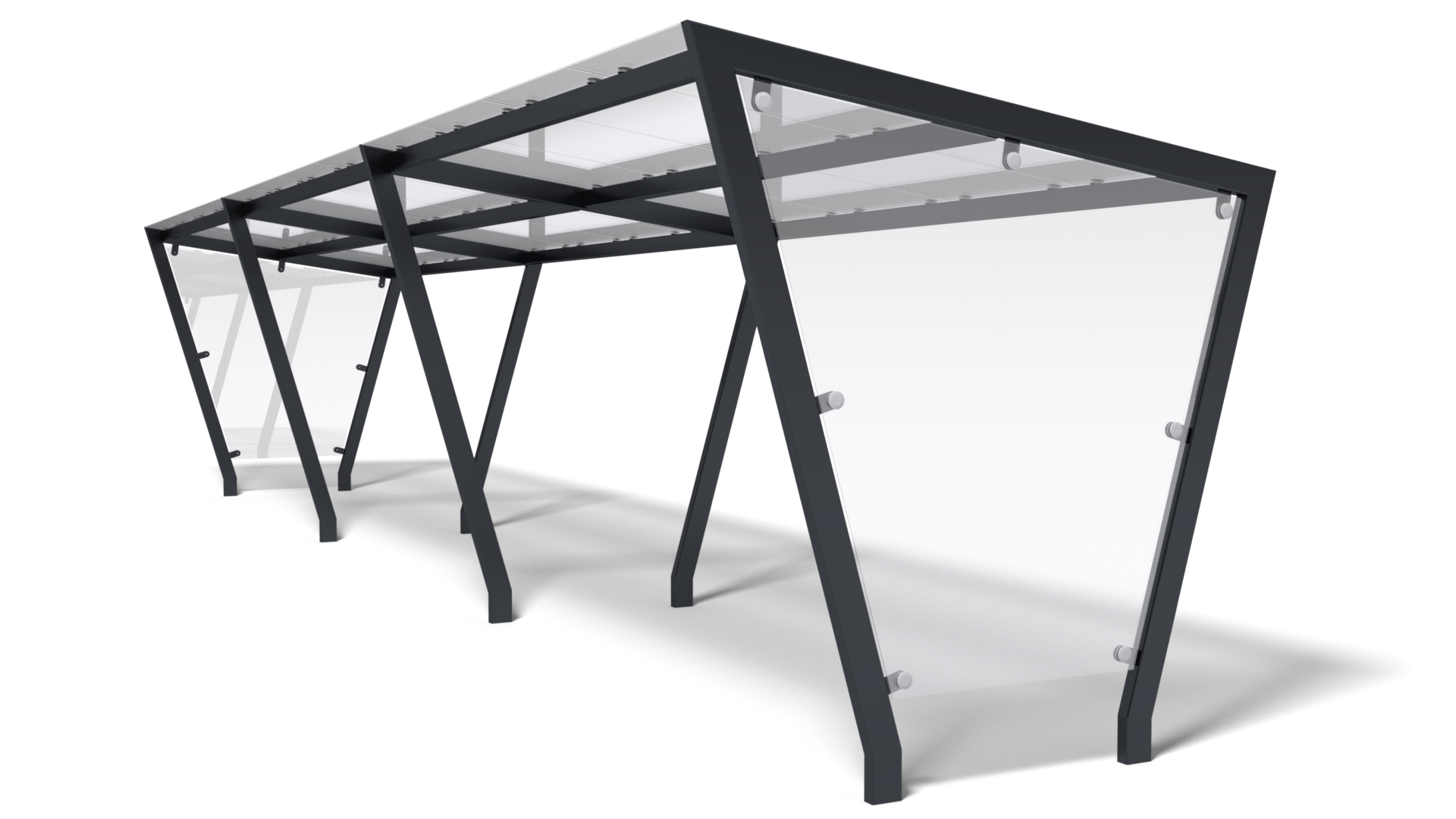

Visualizations of the side walls

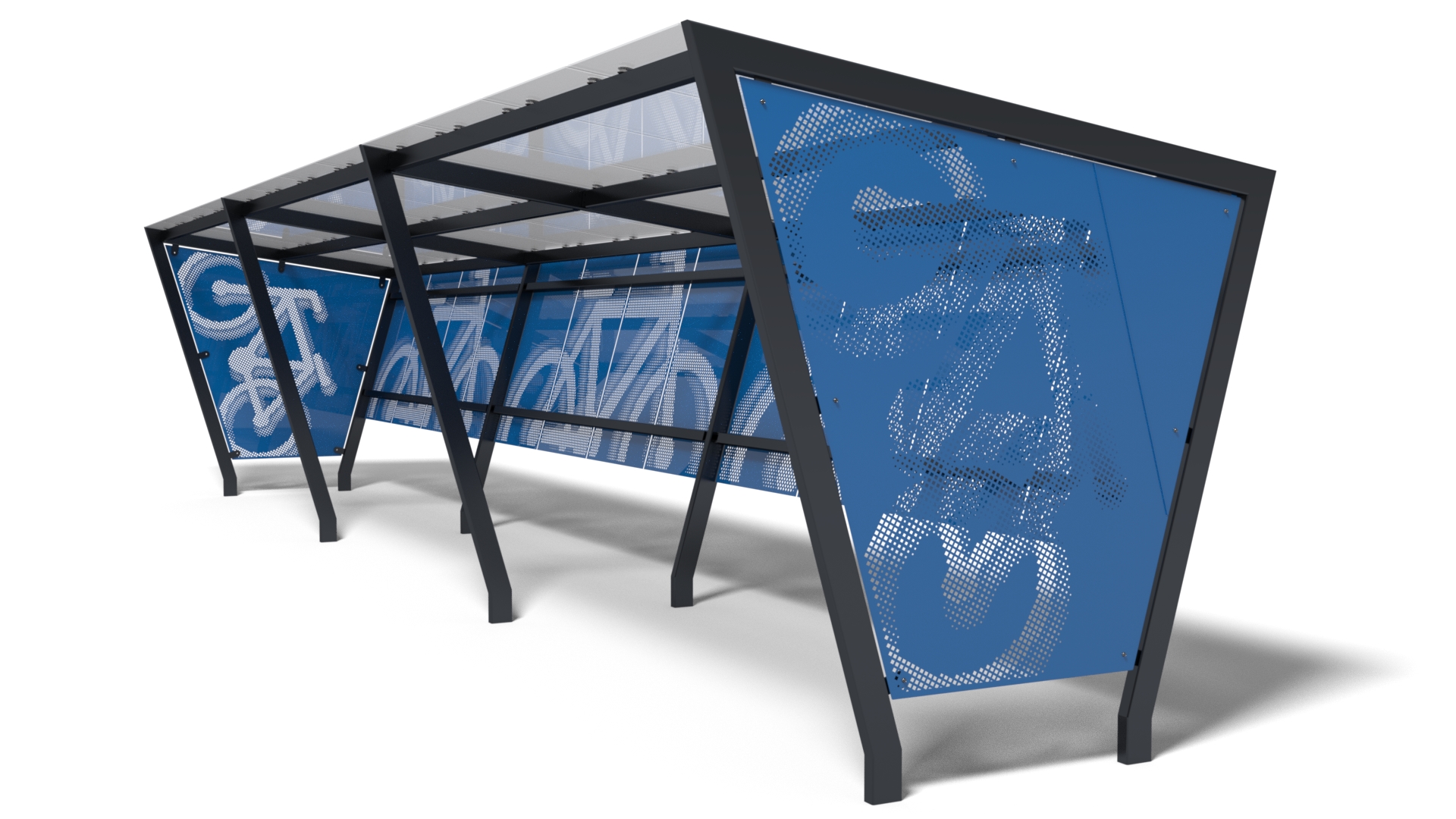

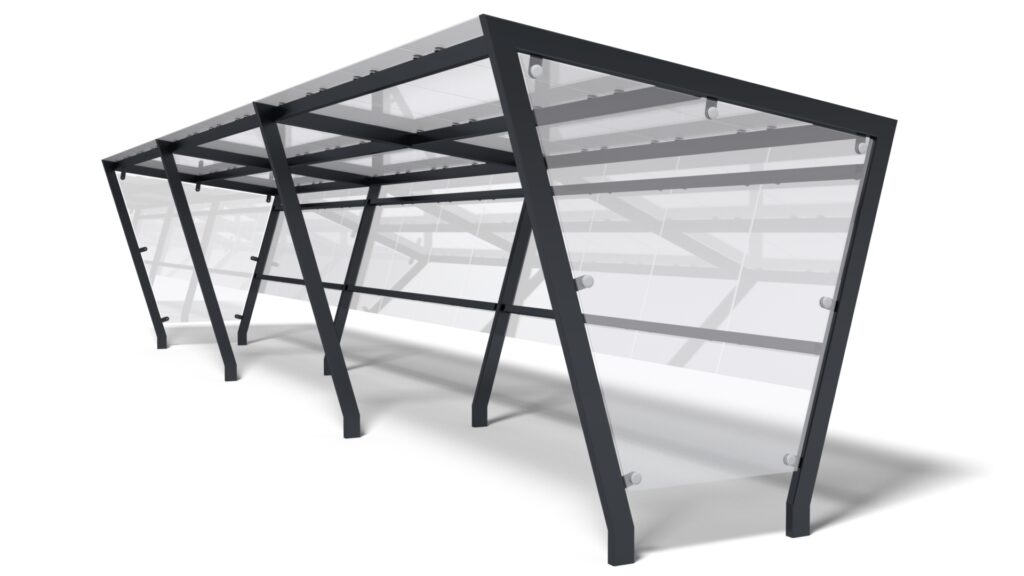

Visualizations of the rear and side walls
